Description
It is a multi-channel, universal charger that has as many as ten independent channels! Eight channels are used to charge cylindrical Ni-MH, Li-ion, Li-HV and Li-FePO4 batteries. The other two channels are used to charge 9V batteries (6F22).
The UC800 charger focuses on maximum compatibility - we can charge any Ni-MH rechargeable batteries of the following sizes: R6 AA, R03 AAA, R14 C, SC and 9V batteries. In addition, the UC800 also supports Li-ion batteries with a voltage of 3.6/3.7V, their high-voltage alternative - Li-HV, whose nominal voltage is 3.85V, and Li-FePO4 batteries. In the case of lithium-based batteries, the charger will support sizes such as: 10440, 14500, 14650, 17500, 17670, 18350, 18500, 18650, 20700, 21700 - also protected, 22650, 25500, 26500, R 261630 , -CR123e . The maximum range of the sled is up to 76 mm, which will ensure the possibility of charging the increasingly popular 20700 and 21700 batteries in the version with electronic protection.

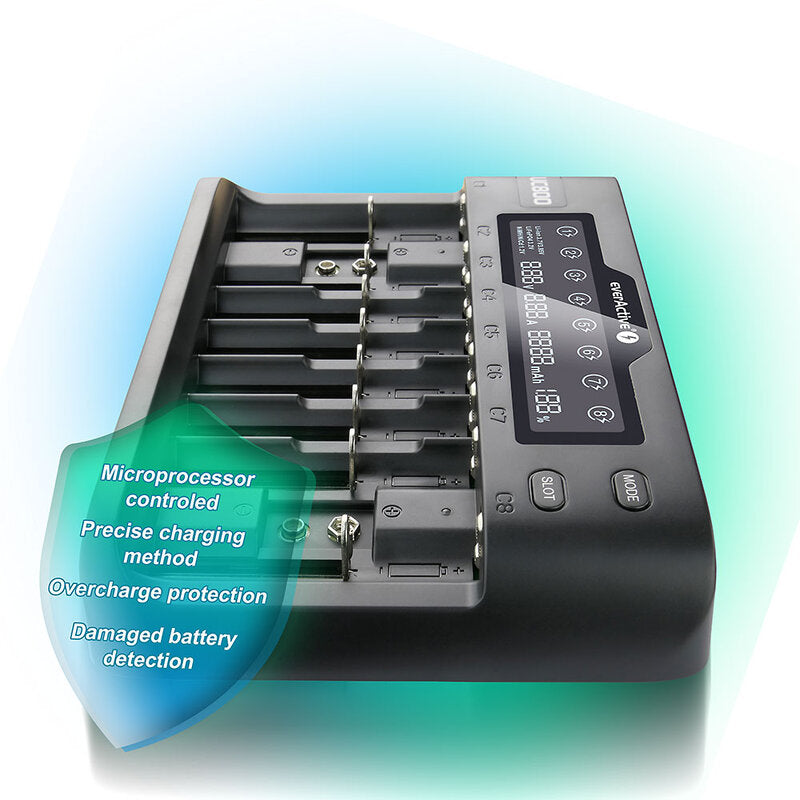

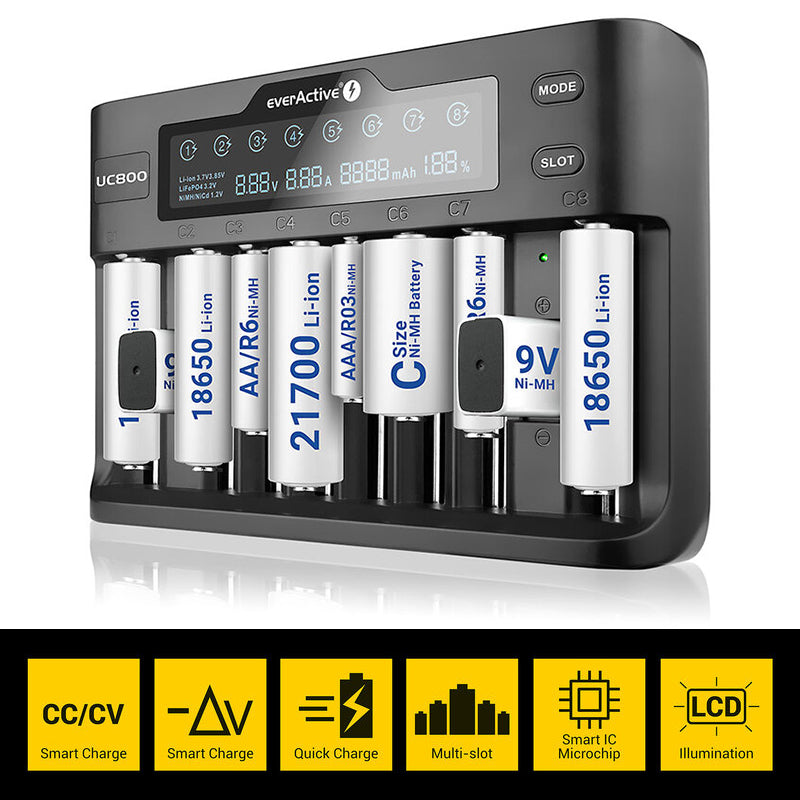

Li-ion/Li-HV and LiFePO4 batteries are charged very accurately using the CC/CV method with a completion of approx. 100mA. This ensures complete safety and complete charging of every battery, even if it is severely weakened or has a low capacity. Ni-MH and 9V batteries are charged using the CC (constant current) method with very accurate dV/PVD detection - charging is completed only when the maximum voltage on the battery is reached (the value of this voltage may be different for each battery). An advanced microprocessor and numerous built-in protections will ensure optimal and safe charging of each battery.
Technical information
- universal processor charger for Li-ion, Li-FePO4, Li-HV, Ni-MH and 6F22/9V cells,
- large and readable screen with backlight,

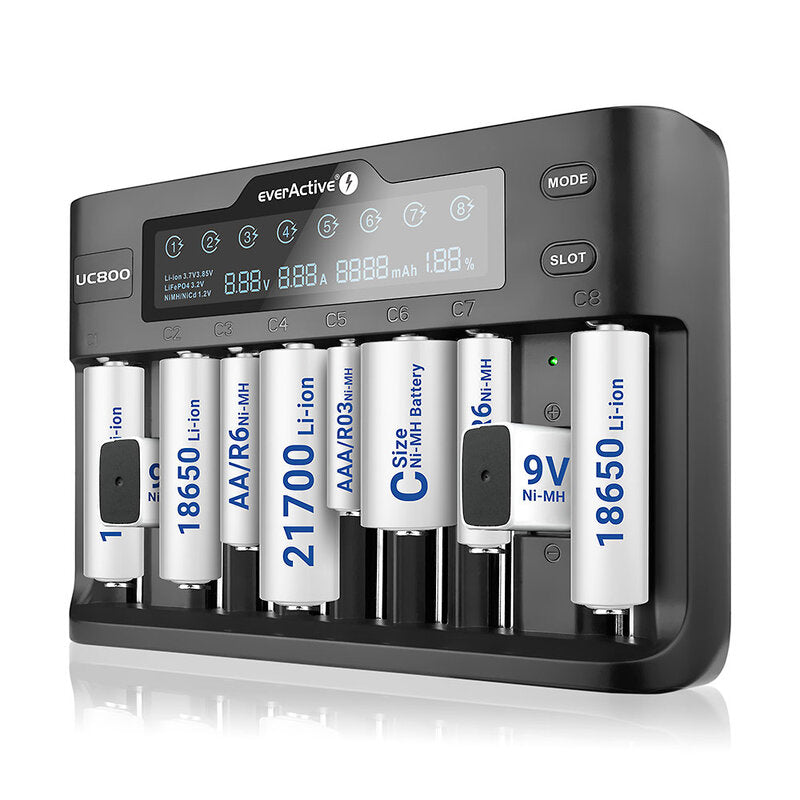

- supported sizes : R6 AA, R03 AAA, R14 C, SC, 10440, 14500, 14650, 17500, 17670, 18350, 18500, 18650, 20700, 21700- also protected, 22650, 25500, 26500, R-1663 0, R, -16630, 6F22/9V,
- charging current: from 200mA to 2000mA for Li-ion / Li-FePO4, from 200mA to 1000mA for Ni-MH, 60mA for 9V,
- Very precise charge control regardless of battery type,
- reactivation of cells 0V.
